CAD-to-AR for Autodesk Inventor® is a technology demonstration for Autodesk Inventor of viewing Inventor 3D models in augmented reality (AR) using the Unity® game engine and the EasyAR™ augmented reality engine.
The main features of CAD-to-AR for Inventor enable the user to:
- Integrate it into the Inventor UI.
- Position a model with a QR code.
- Select and track a submodel.
- View Inventor 3D models in AR.
- Take screenshots of the AR scene.
- Change model opacity in AR.
- Resize, rotate, and move the model, as well as undo and redo model manipulations in AR.
Requirements:
- Windows 8.1 or Windows 10.
- An Autodesk account.
- Autodesk Inventor 2018, 2019, 2020 or 2021.
- A web camera installed and connected.

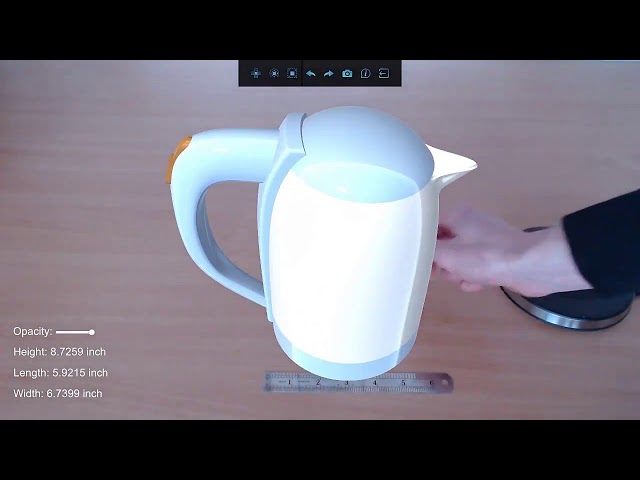

To see CAD-to-AR for Inventor in action, watch a short demo video below.
If you are interested in a tool customized or enhanced for your needs, please contact us to discuss the details.
