FloorPlanMaster™ is a technology demonstration that enables users to automatically create a simple 2D floor plan of a given room, export it to a CAD format, and then view its 3D representation in either Autodesk Forge™ Viewer or ViewER™.

With FloorPlanMaster, users can:

  • Wirelessly connect to a Leica™ Laser Distance Measurer (LDM).
  • Receive the room measurements from the LDM.
  • Automatically draw a 2D plan based on the received measurements.
  • Correct the measured dimensions and angles manually.
  • Set positions of plan objects, such as windows, doors, walls.
  • Measure global and local object properties with the LDM.
  • Store the created 2D plans in the internal memory.
  • Build and save the 3D model of the room in a CAD format.
  • View the created 3D model in the integrated Autodesk Forge Viewer or ViewER-VR™.

Requirements:

  • Android 6.0 or above
  • Leica DISTO™ S910

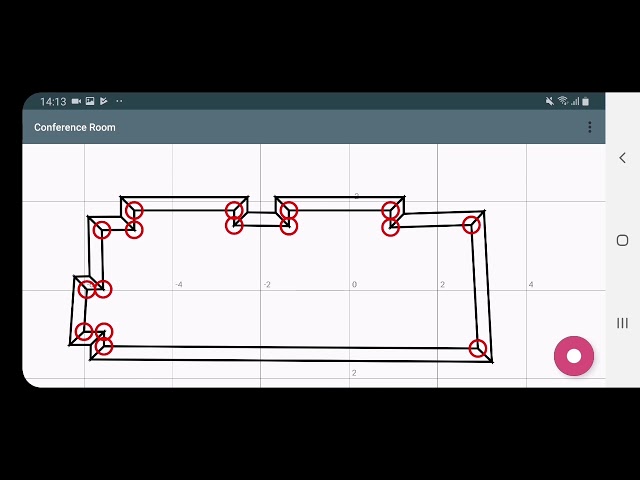

Watch a short demo video below to see the current functionality of the FloorPlanMaster technology demonstration.

If you are interested in a tool customized or enhanced for your needs, please contact us to discuss the details.
