Onshape® Parts Explorer is a technology demonstration that enables users to see all the documents, elements, and bills of materials (BOMs) of their Onshape account in one dialog, search through them using a set of filtering and preview tools, and access the selected instances in Onshape.
With Onshape Parts Explorer, users can:
- Preview all items of a specified document in one dialog.
- Switch between documents using the navigation pane.
- Search for an element by text patterns.
- Filter results by the main Onshape element types, such as Part Studio, Assembly, and so on.
- Search for a specified element within assemblies.
- View and export BOMs to CSV, HTML, and XML.
- Preview BOM items.
- Search for a specific BOM item in other assemblies.
- Open selected elements in Onshape.
Requirements:
- An Onshape account.
- Windows 8.1, 10.
- The most recent stable release of Google Chrome, Mozilla Firefox, Safari, or Opera supported by Onshape.

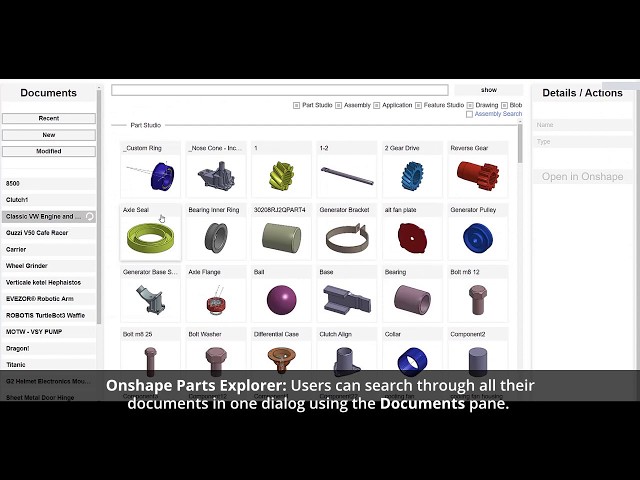

Watch a short demo video below to see the current functionality of the Onshape Parts Explorer technology demonstration.
If you are interested in a tool customized or enhanced for your needs, please contact us to discuss the details.
