Unreal® Construction Timeline Viewer for Navisworks® is a technology demonstration of exporting 3D model geometry, materials, and timelines from Navisworks® 3D model review software and simulating the model construction process in a web-based prototype, which can be used as a viewer, storage, and converter to the Unreal® Engine-based executable prototype for standalone simulation.
The technology demonstration lets users:
- Export a Navisworks 3D model with timeline data into an intermediate binary file
- Run Navisworks timeline simulation in the Unreal Engine-based executable prototype
- Control the simulation process:
- Change the camera position during the simulation
- Manage the timeline speed
- Start the simulation from any specific construction moment
- Simulate the construction of isolated meshes
- Highlight meshes to keep track of them during the overall simulation
- Control the visibility of different meshes during the simulation
Requirements:
- Navisworks 2021

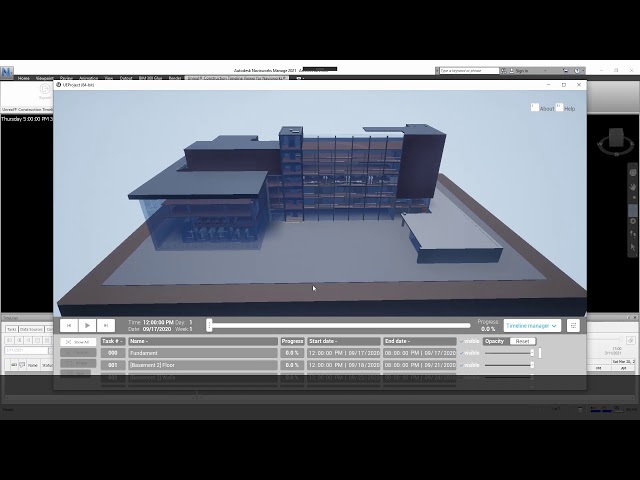

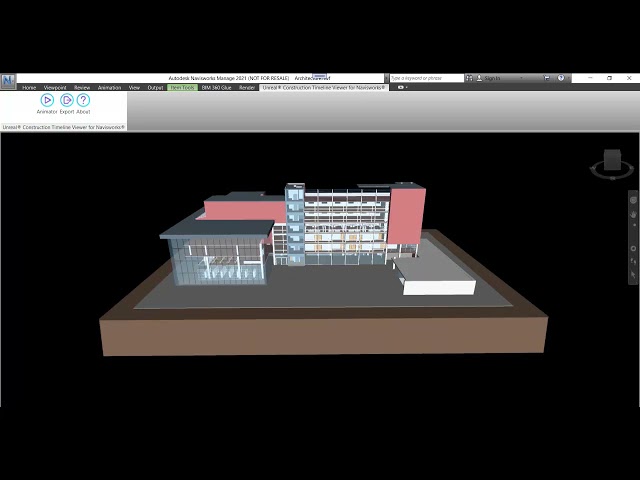

To see Unreal Construction Timeline Viewer for Navisworks in action, watch a short demo video below.
If you are interested in learning more about the demonstrated technologies and how they can be utilized for your organization’s needs, please contact us to discuss the details.
