CADtoEarth™ is a technology demonstration of connecting popular CAD modeling software packages with Cesium®, a geospatial 3D mapping platform for creating virtual globes.
CADtoEarth enables users to:
- Upload a model directly from a modeling session into Cesium.

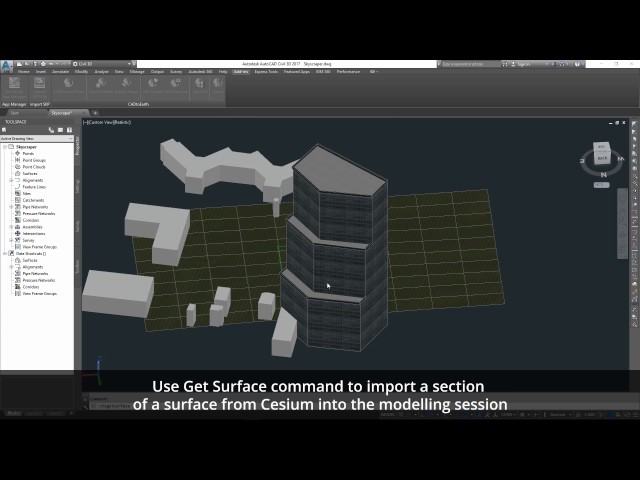

- Import a section of the Earth’s surface directly from Cesium into a modeling session.
- Position a 3D model on the imported surface within a modeling session and subsequently upload it back to Cesium.
- Perform the same operations on 2D objects in a modeling environment and Cesium.
The CADtoEarth technology demonstration supports the following CAD platforms:
- SOLIDWORKS®
- Autodesk® Revit®
- Autodesk Inventor®
- Rhinoceros®
- Autodesk® AutoCAD® Map 3D
- Autodesk® AutoCAD® Civil 3D®
- Autodesk® Fusion 360™
- BricsCAD®

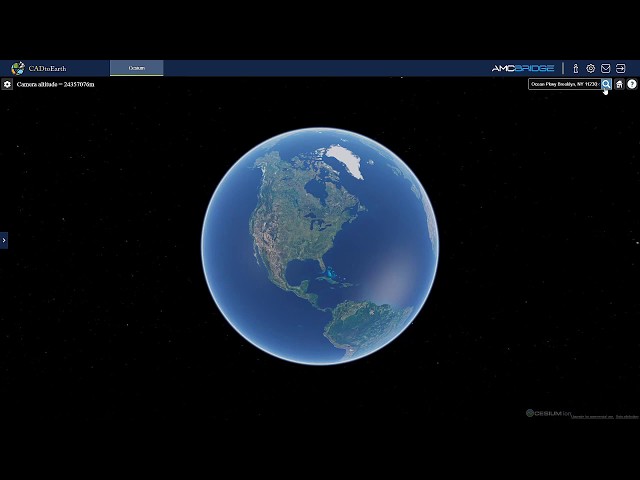

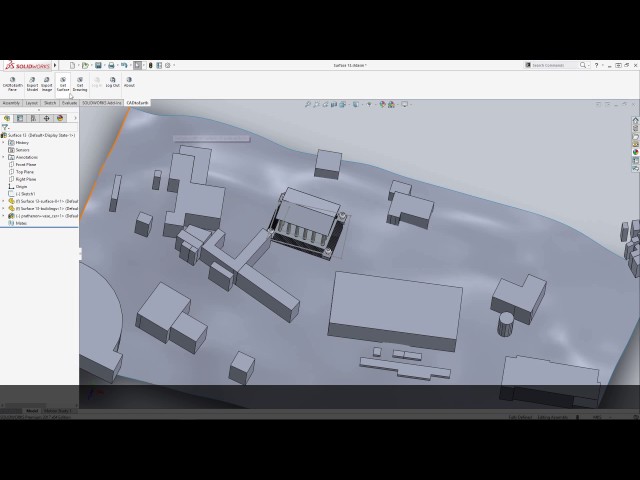

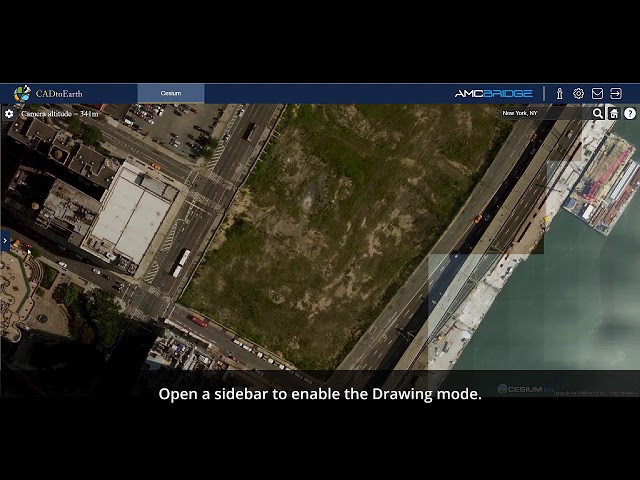

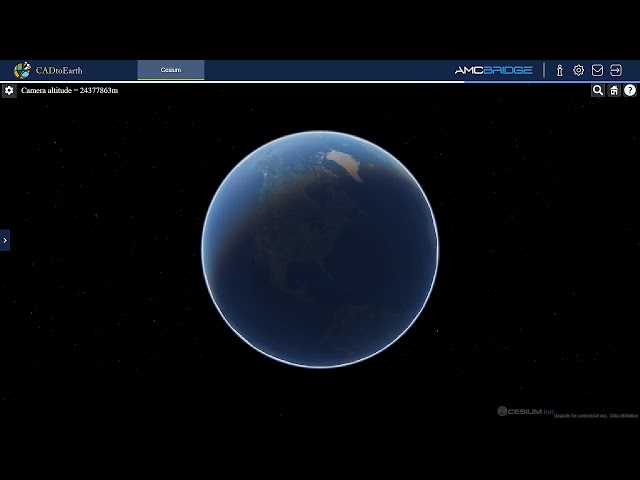

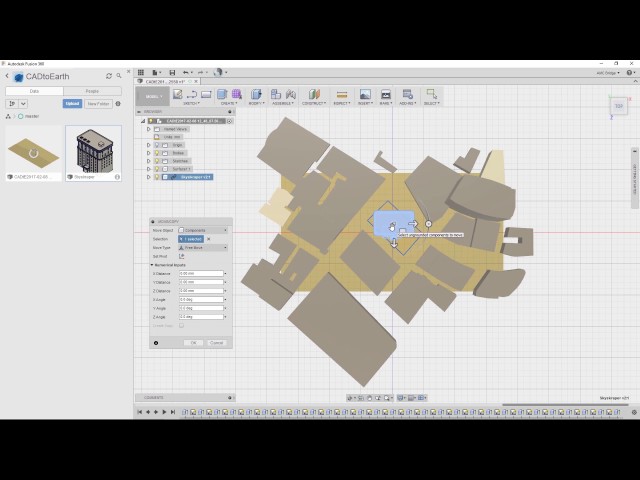

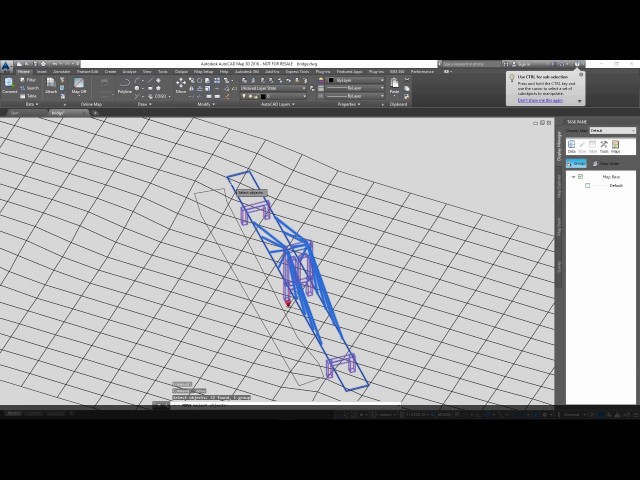

The video demonstrations below show what CADtoEarth can do today.
If you are interested in a tool customized or enhanced for your needs, please contact us to discuss the details.
